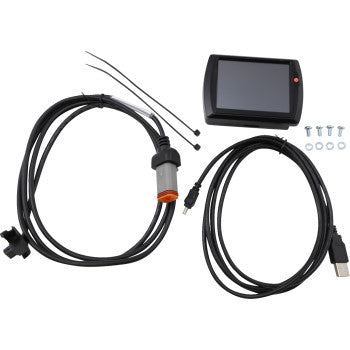

PV-1B Power Vision Tuning Module 01 to 13 TC and XL 4-pin

PV-1B Power Vision Tuning Module 01 to 13 TC and XL 4-pin

Regular price $620.00 USD
Regular price $667.00 USD Sale price $620.00 USD
Sale Sold out


  • 1. For all H D models w/ Delphi EFI (except 11-20 Softails, 12-17 Dynas, 14-20 Dressors, 14-21 XL, 02-16 V-Rod, and 15-20 XG Models) (4 pin connector)

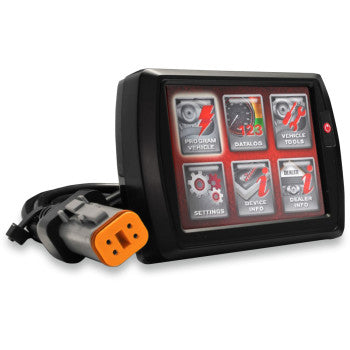

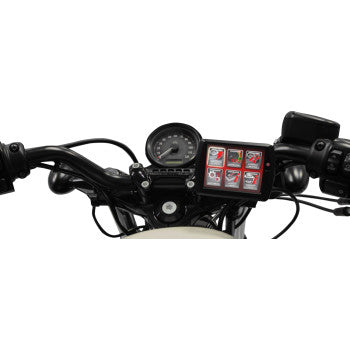

  • The sophisticated yet easy-to-use 3.5" full-color touch-screen display mounts to handlebars with integrated Amps 4-hole threaded inserts; also mounts to most aftermarket accessory mounts that feature AMPS 4-mounting options
  • The display's interface cable plugs directly to the bike's diagnostic connector
  • NO COMPUTER REQUIRED; simply select the tune and follow the on-screen prompts to flash the bike; tunes can also be edited directly from the Power Vision
  • Utilizes WinPV (Windows PC-based tuning application)
  • Stores up to six different tunes that can be flashed to the bike
  • Downloads and stores the stock calibration in case OEM restoration is needed; stock calibration can also be saved as an editable copy and used as a starting point
  • Dynojet preconfigured tunes are preloaded on the unit; Power Vision will identify the bike's information and automatically sort hundreds of applicable, dyno-proven tunes
  • Custom tunes can be loaded by a tuning shop or received via email and loaded onto the device
  • Displays all J1850 H-D vehicle data, wide-band air fuel ratio and various calculated channels (including MPG instant and trip MPG)
  • AutoTune Basic and Pro3 calculates and stores fuel trims to optimize fuel curve
  • Checks and clears diagnostic codes
  • Features adaptive trims and idle offset (with bike running)
  • Black series features a flat black outer case
  • See Dynojet website for information about purchasing additional Power Vision tune licenses.
  • Made in the USA
