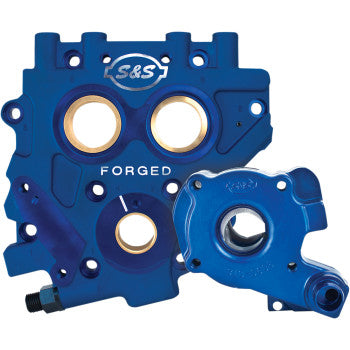

S&S TC3 Oil Pump and Cam Support Plate Kit

S&S  TC3 Oil Pump and Cam Support

• Precision CNC machined forged aluminum
• Increased structural strength
• Dimensional stability
• Freedom for internal porosity
• Separate scavenge sections for flywheel cavity and cam chest scavenge each area more efficiently with no interference
• Gerotors are designed to tolerate more pinion shaft runout without damage
• Cam chest pic up features a magnetic trap to protect scavenge rotors from metal debris
• Both scavenge rotors are protected from debris, the most common cause of stock oil pump failure
• Passage plugs are removable for service
• Bronze pinion shaft bushing in all models and bronze cam bushings in 07-15 style can be replaced
• Adjustable oil pressure regulator - adjust without removing plate from engine
• 99-06 cam support plate is designed to use late style hydraulic cam chain tensioners because stock spring-loaded tensioners used in 99-06 models don't adequately control the valve train at high rpm, especially with higher lift cams or performance valve springs
• Made in the U.S.A.

Plate Kit
